Tin Plated Copper Covered Steel Wire
SPC Products prides itself on being the leading manufacturer and supplier of high-quality Tin Plated Copper Covered Steel wire in India. This product is with low carbon steel core claded with Copper that promises conductivity (40%). On this, we plate Tin to provide better contact resistance and solderability for the applications it is used. Each layer of our single and stranded Tin Plated Copper Covered Steel wire is made with high purity of materials.
Tin Plated Copper Covered Steel Wire Features
The products that we manufacture are known for having high tensile strength and resistance to corrosion. They are easily solderable so that they are utilized for many applications. They are used by many industries ranging from the wireless industry, transit systems, transportation, and wire & cable. The Tin plating ensures that the wires have a sufficient layer for environmental protection.
No. 1 Manufacturer Of Tin Plated Copper Covered Steel Wires
We are an ISO company with rich experience of more than 25 years. Our professionals are known for their engineering skills and precision. What’s more is we can provide customization to suit their differing needs. This means you can order products that will be exacting requirements.
We are highly trusted for single and stranded Tin Plated Copper Covered Steel wire to suit various applications. This is because you can always get assured quality at all time and at competitive price from us.
ADVANTAGES OF TIN PLATED COPPER COVERED STEEL WIRE
- Tin Plated Copper Covered Steel Wire are used in cabling systems with operating temperatures up to 150°C.
- ASTM B 452 and ASTM B 33 defines the parameter of Tin Plated Copper Covered Steel Wire.
- Tin applied as a pure metal coating to improve solderability of copper covered steel wire.
LIMITATION OF TIN PLATING
- Can not be used beyond Rated temperature of 150ºC.
- Copper Migration to the surface through Tin coating with the time makes it to oxidise and degrade solderability.
- Controlled parameter processing of insulating process in necessary otherwise Tin Plated Copper Covered Steel Wire turns blackish.
- Usually not recommend for longer life span in open environment.
- Tin plated copper covered steel wire have limited shelf life for solderability.
- Over a period of time.(rate determined by temperature) Tin and Copper interact to form an intermetallic alloy. This reaction occurs at room temperature. It cannot be prevented by protective covering.
PRODUCT DETAILS
-

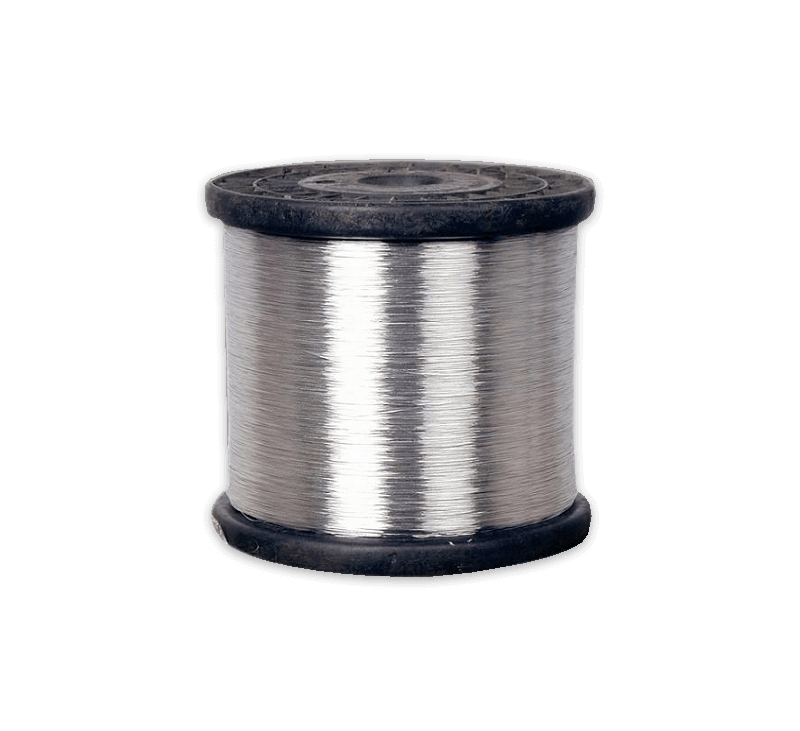

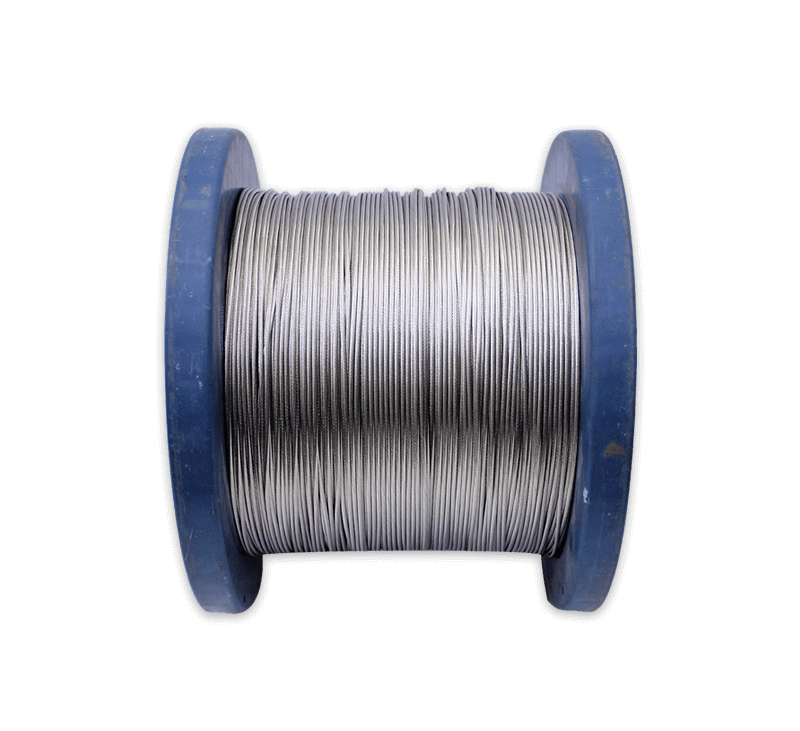

Single Tin Plated Copper Covered Steel Wire Size Range (Diameter)
- AWG 18 to AWG 24
- SWG 19 to SWG 25
- 1.00 mm to 0.50 mm
- 0.0400 inch to 0.020 inch
-

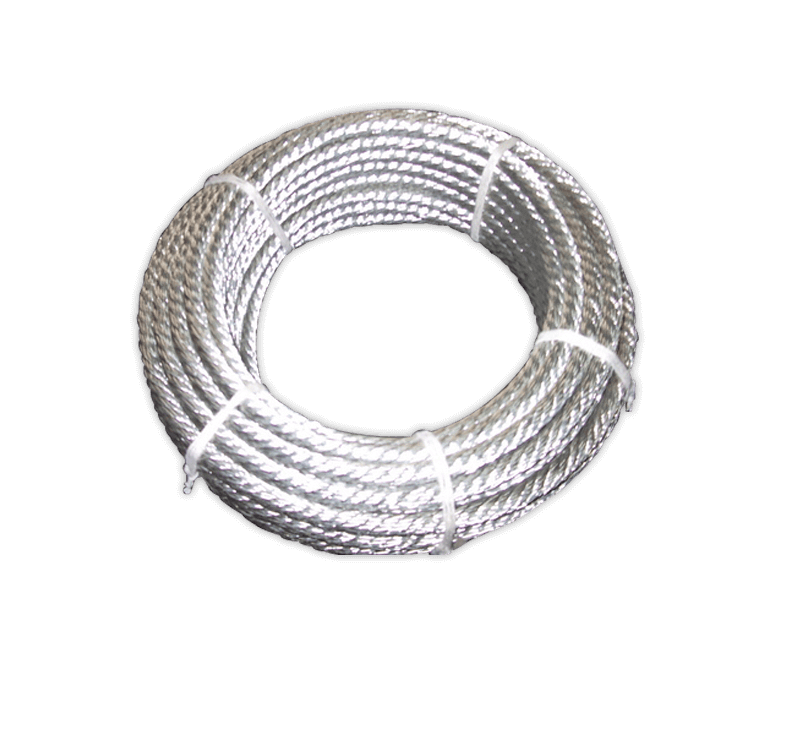

Stranded Tin Plated Copper Covered Steel Wire Conductor Size Range (Diameter)
- AWG 8 (19X20/ AWG) to AWG 11 (19X24 AWG)
-
Tin Plating Range
- 0.6 micron to 7 micron
- Or as per Customer requirement
-
Tin Plated Copper Covered Steel Wire Conductor Specifications
- ASTM B 33
- ASTM B 452
-
Stranded Tin Plated Copper Covered Steel Wire Conductor Specifications
- ASTM B 286
-
Configurations of Strand/Bunch/Rope Conductor
- True Concentric
- Unilay
